Leishmania RNA Virus Controls the Severity of Mucocutaneous Leishmaniasis
Annette Ives1, Catherine Ronet1, Florence Prevel1, Giulia Ruzzante1, Silvia Fuertes-Marraco1, Frederic Schutz2, Haroun Zangger1, Melanie Revaz-Breton1,*, Lon-Fye Lye3, Suzanne M. Hickerson3, Stephen M. Beverley3, Hans Acha-Orbea1, Pascal Launois4, Nicolas Fasel1,†, and Slavica Masina1

1Department of Biochemistry, University of Lausanne, 1066 Epalinges, Switzerland.
2Swiss Institute of Bioinformatics, University of Lausanne, 1015 Dorigny, Switzerland.
3Department of Molecular Microbiology, Washington University, School of Medicine, St Louis, MO 63110, USA.
4World Health Organization–Immunology Research and Training Centre, 1066 Epalinges, Switzerland.
†To whom correspondence should be addressed. E-mail: nicolas.fasel@unil.ch

Mucocutaneous leishmaniasis is caused by infections with intracellular parasites of the Leishmania Viannia subgenus, including Leishmania guyanensis. The pathology develops after parasite dissemination to nasopharyngeal tissues, where destructive metastatic lesions form with chronic inflammation. Currently, the mechanisms involved in lesion development are poorly understood. Here we show that metastasizing parasites have a high Leishmania RNA virus–1 (LRV1) burden that is recognized by the host Toll-like receptor 3 (TLR3) to induce proinflammatory cytokines and chemokines. Paradoxically, these TLR3-mediated immune responses rendered mice more susceptible to infection, and the animals developed an increased footpad swelling and parasitemia. Thus, LRV1 in the metastasizing parasites subverted the host immune response to Leishmania and promoted parasite persistence.

Leishmania parasites are obligate intracellular protozoan parasites transmitted to the mammalian host by the bite of an infected sand fly, where they predominantly infect macrophages. In Latin America, leishmaniasis caused by the Leishmania Viannia (L.Viannia) subgenus is endemic, causing cutaneous (CL) and mucocutaneous (MCL) leishmaniasis (1). Clinical MCL involves parasitic dissemination to the nasopharyngeal areas of the face, leading to destructive metastatic secondary lesions and hyperinflammatory immune responses (2–4). About 5 to 10% of individuals asymptomatic or with resolved CL lesions may develop MCL (1, 5, 6).

MCL development is associated with persistent immune responses showing proinflammatory mediator expression with high tumor necrosis factor α (TNF-α), CXCL10, and CCL4; a mixed intralesional T helper 1 (TH1)/TH2 phenotype; and elevated cytotoxic T cell activity (7–10). In addition to parasite-derived virulence factors, host genetics [such as polymorphisms for TNF-α and interleukin-6 (IL-6)] and immune status appear to influence MCL development (11, 12).

Hamsters infected with L.Viannia parasites isolated from human MCL lesions reproduce the metastatic phenotype with primary and secondary lesion development (13). Using this model, we characterized clones derived from the metastasizing L.guyanensis WHI/BR/78/M5313-L.g.M5313(M+) strain as metastatic (L.g.M+) or nonmetastatic (L.g.M−) after infection, depending on their ability to reproducibly develop secondary metastatic lesions (14). Previously, we showed that L.g.M+ clones derived from L.g.M5313 were more resistant to oxidative stress than L.g.M− clones and persisted in activated murine bone-marrow–derived macrophages despite their elevated nitric oxide levels (15).

On the basis of these observations, we hypothesized that Lg.M+ and L.g.M− parasites differentially modulate the host macrophage responses. Using DNA microarrays, we identified differential gene expression between uninfected macrophages and L.g.M+ (1672) or L.g.M− (1513) infected macrophages, and L.g.M− directly compared to L.g.M+ (294) infected macrophages. Statistical significance was determined at ≥1.5-fold, P ≤ 0.05. We focused on genes involved in the immune response because of their relevance in MCL pathology.

In vitro, infected macrophages expressed significantly greater amounts of chemokines and cytokines CCL5, CXCL10, TNF-α, and IL-6 after infection with L.g.M+ parasites compared with L.g.M− parasites or L. major LV39 (Fig. 1, A and B) (16). We observed similar increased cytokine and chemokine expression after infection with L.g. from human MCL lesions (h-MCL-Lg1398) as compared to cytokine and chemokine expression during L.g. infection from human CL lesions (h-CL-Lg1881) (Fig. 1C). Thus, the elevated cytokine and chemokine levels after macrophage infection are associated with metastasizing parasites.

View larger version:
In this page In a new window
Download PowerPoint Slide for Teaching
Fig. 1
Metastasizing L.g. parasites activate bone-marrow macrophages to elevate proinflammatory cytokine and chemokine levels. (A) Transcript and (B and C) secreted protein levels induced after C57BL/6 or BALB/c macrophage infection (ratio 1:10) with Leishmania parasites [two L.g.M− clones (Lg03 and Lg17); two L.g.M+ clones (Lg13 and Lg21); L.g.M5313(M+); L.g. derived from h-MCL (−L.g.1398) or hCL (L.g.1881) lesions; and L.major LV39] for 6 hours. Results were confirmed in several independent experiments (n > 3), and data reflect mean ± SD transcript or protein increase relative to unstimulated controls. Significance was determined at *P ≤ 0.05, and **P ≤ 0.01 for L.g.M+ or h-MCL versus L.g.M−, h-CL, and/or L. major LV39-stimulated macrophages.

Leishmania parasites enter the macrophage endosomal compartment and form a phagolysosome (17). Pretreatment of macrophages with chloroquine, which induces vacuolar alkanization and impairs recognition of pathogen-derived motifs by cells (18), or cytochalasin D, which inhibits parasite phagocytosis by inhibiting actin polymerization (19), showed that L.g.M+ parasite-dependent induction of proinflammatory mediator required parasite entry into the cell and sequestration into a mature phagolysosome (fig. S1A). Therefore, we investigated the role of the macrophage endosomal Toll-like receptors (TLRs) of the myeloid differentiation factor 88 (MyD88) (TLR7 and TLR9) and/or of the TIR domain–containing adapter-inducing interferon-β (TRIF)-dependent pathways (TLR3). Using macrophage functionally deficient for TLR3, 7, or 9, or for the adaptors MyD88 and TRIF, we found that the TLR3-TRIF–dependent pathway was essential for increased proinflammatory mediator expression after macrophage infection with L.g.M+ (Fig. 2 and fig. S1B). In addition, MyD88-dependent TLR7 activation within the macrophage was required for maximal secretion of the proinflammatory mediators after infection with M+ parasites (Fig. 2 and fig. S1B). In our system, TLR9 was not involved in L.g.M+-dependent macrophage responses, suggesting that recognition of Leishmania-derived DNA motifs by the host’s TLR9 does not differ between the Leishmania strains (Fig. 2A).

View larger version:
In this page In a new window
Download PowerPoint Slide for Teaching
Fig. 2
L.g.M+ or h-MCL parasite-dependent induction of IFN-β and proinflammatory mediators by macrophages uses TLR3 and TRIF. (A and C) Secreted protein and (B) transcript levels of cytokines and chemokines induced after infection of macrophages (ratio 1:10) with Leishmania parasites [two L.g.M+ clones (Lg13 and Lg21), two L.g.M− clones (Lg03 and Lg17), and L.g.M5313(M+)] for 6 and 2 hours, respectively. Results were confirmed in several independent experiments (n = 3), and data reflect mean ± SD transcript or protein increase relative to unstimulated controls of L.g.M+ or L.g.M−. Significance was determined between C57BL/6 and deficient macrophages (A and C) or between L.g.M+ or h-MCL and L.g M− and h-CL parasites (B) at *P ≤ 0.05 and **P ≤ 0.01. n.i, not induced.

In other murine models of infection, TLR3 ligation up-regulates proinflammatory mediators (TNF-α, IL-6, and chemokines) and type I interferons, resulting in organ damage (20–22). To confirm the role of TLR3 in the recognition of L.g.M+ parasites, we analyzed IFN-β expression. Infection with L.g.M+ induced significantly more IFN-β transcripts (31.14 ± 23.46) than L.g.M− clones (5.83 ± 4.27) after 6 hours by comparison with unstimulated macrophage controls. This increase was observed as early as 2 hours after infection (Fig. 2B). At the protein level, after macrophage infection, L.g.M+ M5313-derived and h-MCL induced higher IFN-β secretion than L.g.M− parasites or h-CL parasites (Fig. 2C). Furthermore, this expression was TLR3-TRIF dependent, with the MyD88 signaling pathway augmenting secretion (Fig. 2C).

Endosomal TLRs recognize nucleic acid motifs, with TLR7 and TLR3 recognizing single-stranded RNA (ssRNA) and double-stranded RNA (dsRNA), respectively (23). Our experimental evidence suggested that nucleic acid–derived motifs were involved in the host macrophage response to infection with metastasizing L.g. parasites. We observed increased production of CCL5, TNF-α, and IL-6 in macrophages exposed to single-stranded ribonuclease (ssRNAse)– and deoxyribonuclease (DNAse)–treated nucleic acids derived from L.g.M+ parasites, compared with L.g.M− and L.major LV39 (fig. S2). Although not statistically significant, these results suggested that the nucleic acid motif is resistant to ssRNAse and DNAse treatments and is likely to be dsRNA.

L.Viannia parasites, including L.g.M5313(M+) and L. guyanensis and L. braziliensis MCL human isolates, harbor the dsRNA Leishmania RNA virus 1 (LRV1) (24–26). These viruses have a capsid coat protecting a 5.3-kb dsRNA genome (27). Metastasizing promastigotes had greater levels of LRV1 (L.g.M+ or h-MCL-LRVhigh) than nonmetastasizing promastigotes (L.g.M− or h-CL-LRVlow) as shown by the presence of a ~5.3-kb, DNAse-insensitive, RNAse III–sensitive band in agarose gels, and LRV1 quantification by quantitative reverse transcriptase–polymerase chain reaction (qRT-PCR) (Fig. 3, A to C, and fig. S3A). We thus verified that macrophages treated with purified LRV1 dsRNA (fig. S3) induced a phenotype similar to that of macrophage infected with metastasizing parasites, and as shown by an increased expression of CXCL10, CCL5, TNF-α, IL-6, and IFN-β transcripts, this increase was TLR3 dependent (Fig. 3D). Because the L.g.M5313 M+ and M− parasites were not isogenic, we performed new experiments with parasites derived from the WHO reference strain L.g.M4147 that metastatizes in the hamster (28) and carries the LRV1-4 virus (29). Macrophage infection with L.g.M4147-LRVhigh parasites produced significantly greater amounts of cytokines and chemokines than infection with its respective isogenic virus-free derivative L.g.M4147LRVneg, in a TLR3-dependent manner (Fig. 3E and fig. S4) (30, 31). Similar parasite burdens were observed for all parasites infected into the wild-type and the TLR-, TRIF-, and MyD88-deficient macrophages (table S1).

View larger version:
In this page In a new window
Download PowerPoint Slide for Teaching
Fig. 3
High LRV1 burden within metastasizing L.g. promastigotes stimulates cytokine and chemokine production in macrophages via TLR3. (A) ssRNAse-treated nucleic acids were DNAse treated, and the 5.3-kb LRV1 dsRNA band visualized by gel electrophoresis. (B) LRV1 virus burden within Leishmania parasites was assessed by qRT-PCR with LRV1 and Leishmania Kmp11 gene primers; significance was determined between metastasizing (L.g.M+ and h-MCL) versus nonmetastasizing (L.g.M− and h-CL) parasites. (C) Nucleic acids from L.g.M5313(M+) promastigotes, pretreated with a ssRNA-specific RNAse, were treated with DNAse or with the dsRNA-specific RNAse III and separated by gel electrophoresis with the marker Lambda-DNA–Eco RI + Hind III (HindIII). (D) Macrophages were stimulated with purified LRV1 dsRNA (1 μg/ml) in endotoxin-free (LAL) water, poly(I:C) (1 μg/ml), or lipopolysaccharide (LPS, 100 ng/ml) for 4 hours. Transcript levels were assessed relative to unstimulated C57BL/6 macrophages by qRT-PCR. Results are expressed as mean ± SD (n = 2). (E) Protein abundance was quantified after infection of macrophages (ratio 1:10) with L.g.M4147−LRVhigh (clones 2 and 3) or L.g.M4147−LRVneg (clones 3 and 4) parasites after 6 hours. Controls: L.g.M− (Lg17), L.g.M5313(M+), poly(I:C) (2 μg/ml), and LPS (100 ng/ml). Data reflect mean ± SD of protein secretion relative to unstimulated controls (n = 2). Significance was determined at *P ≤ 0.05 or **P ≤ 0.01.

A role for TLR3 and LRV1 in leishmaniasis development was analyzed in vivo, with TLR3−/−, TLR7−/−, and WT mice that were infected in the footpad. A significant decrease in footpad swelling, and diminished parasite burden, were observed in TLR3−/− mice infected with L.g.M+LRVhigh (M5313) or L.g.M4147−LRVhigh parasites compared with wild-type mice (Fig. 4 and fig. S5). No consistent, significant decrease in disease pathology was observed between TLR3−/− and wild-type mice infected with L.g.M−LRVlow (Lg17) or L.g.M4147−LRVneg or between TLR7−/− and wild-type infected mice with the different parasite isolates (Fig. 4 and Fig. S5). Further experimentation is required to elucidate the role of TLR7-dependent immune responses with respect to infection with LRV1-containing Leishmania parasites.

View larger version:
In this page In a new window
Download PowerPoint Slide for Teaching

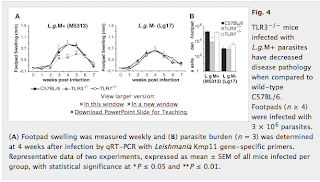

Fig. 4
TLR3−/− mice infected with L.g.M+ parasites have decreased disease pathology when compared to wild-type C57BL/6. Footpads (n ≥ 4) were infected with 3 × 106 parasites. (A) Footpad swelling was measured weekly and (B) parasite burden (n = 3) was determined at 4 weeks after infection by qRT-PCR with Leishmania Kmp11 gene-specific primers. Representative data of two experiments, expressed as mean ± SEM of all mice infected per group, with statistical significance at *P ≤ 0.05 and **P ≤ 0.01.

Our work showed that recognition of LRV1 within metastasizing L.g. parasites by the host promoted inflammation and subverted the immune response to infection to promote parasite persistence (2, 3, 32). Because recognition of LRV1 within the metastasizing L.g. parasites arises early after infection, we hypothesize that LRV1 dsRNA is released from dead parasites, unable to survive within the host macrophage. These results could open the door to better diagnosis of risk for MCL disease and facilitate the development of new and more efficient treatment regimes.

Supporting Online Material

Materials and Methods
Figs. S1 to S4
Table S1
↵* Present address: Route de Berne 7A, 1700 Fribourg, Switzerland.
Received for publication 20 October 2010.
Accepted for publication 23 December 2010.
References and Notes

↵ K. Weigle, N. G. Saravia, Natural history, clinical evolution, and the host-parasite interaction in New World cutaneous Leishmaniasis. Clin. Dermatol. 14, 433 (1996). CrossRefMedlineWeb of Science
↵ C. Vergelet al., Evidence for leishmania (viannia) parasites in the skin and blood of patients before and after treatment. J. Infect. Dis. 194, 503 (2006). Abstract/FREE Full Text
↵ J. E. Martinez, L. Alba, Arias, M. A. Escobar, N. G. Saravia, Haemoculture of Leishmania (Viannia) braziliensis from two cases of mucosal leishmaniasis: Re-examination of haematogenous dissemination. Trans. R. Soc. Trop. Med. Hyg. 86, 392 (1992). CrossRefMedlineWeb of Science
↵ A. Barralet al., Transforming growth factor-beta in human cutaneous leishmaniasis. Am. J. Pathol. 147, 947 (1995). Abstract
↵ V. S. Amato, F. F. Tuon, H. A. Bacha, V. A. Neto, A. C. Nicodemo, Mucosal leishmaniasis. Current scenario and prospects for treatment. Acta Trop. 105, 1 (2008). CrossRefMedlineWeb of Science
↵ J. Arevaloet al., Influence of Leishmania (Viannia) species on the response to antimonial treatment in patients with American tegumentary leishmaniasis. J. Infect. Dis. 195, 1846 (2007). Abstract/FREE Full Text
↵ D. R. Fariaet al., Decreased in situ expression of interleukin-10 receptor is correlated with the exacerbated inflammatory and cytotoxic responses observed in mucosal leishmaniasis. Infect. Immun. 73, 7853 (2005). Abstract/FREE Full Text
S. T. Gazeet al., Mucosal leishmaniasis patients display an activated inflammatory T-cell phenotype associated with a nonbalanced monocyte population. Scand. J. Immunol. 63, 70 (2006). CrossRefMedlineWeb of Science
C. Pirmezet al., Cytokine patterns in the pathogenesis of human leishmaniasis. J. Clin. Invest. 91, 1390 (1993). MedlineWeb of Science
↵ D. A. Vargas-Inchausteguiet al., CXCL10 production by human monocytes in response to Leishmania braziliensis infection. Infect. Immun. 78, 301 (2010). Abstract/FREE Full Text
↵ J. M. Blackwell, Tumour necrosis factor alpha and mucocutaneous leishmaniasis. Parasitol. Today 15, 73 (1999). CrossRefMedlineWeb of Science
↵ L. Castellucciet al., IL6 -174 G/C promoter polymorphism influences susceptibility to mucosal but not localized cutaneous leishmaniasis in Brazil. J. Infect. Dis. 194, 519 (2006). Abstract/FREE Full Text
↵ B. Travi, J. Rey-Ladino, N. G. Saravia, Behavior of Leishmania braziliensis s.l. in golden hamsters: Evolution of the infection under different experimental conditions. J. Parasitol. 74, 1059 (1988). CrossRefMedline
↵ J. E. Martínez, L. Valderrama, V. Gama, D. A. Leiby, N. G. Saravia, Clonal diversity in the expression and stability of the metastatic capability of Leishmania guyanensis in the golden hamster. J. Parasitol. 86, 792 (2000). CrossRefMedline
↵ N. Acestoret al., Resistance to oxidative stress is associated with metastasis in mucocutaneous leishmaniasis. J. Infect. Dis. 194, 1160 (2006). Abstract/FREE Full Text
↵Materials and methods are available as supporting material on Science Online.
↵ C. Bogdan, M. Röllinghoff, A. Diefenbach, The role of nitric oxide in innate immunity. Immunol. Rev. 173, 17 (2000). CrossRefMedlineWeb of Science
↵ F. H. Abou Fakher, N. Rachinel, M. Klimczak, J. Louis, N. Doyen, TLR9-dependent activation of dendritic cells by DNA from Leishmania major favors Th1 cell development and the resolution of lesions. J. Immunol. 182, 1386 (2009). Abstract/FREE Full Text
↵ R. Ben-Othman, L. Guizani-Tabbane, K. Dellagi, Leishmania initially activates but subsequently down-regulates intracellular mitogen-activated protein kinases and nuclear factor-kappaB signaling in macrophages. Mol. Immunol. 45, 3222 (2008). CrossRefMedlineWeb of Science
↵ K. A. Cavassaniet al., TLR3 is an endogenous sensor of tissue necrosis during acute inflammatory events. J. Exp. Med. 205, 2609 (2008). Abstract/FREE Full Text
R. Le Gofficet al., Detrimental contribution of the Toll-like receptor (TLR)3 to influenza A virus-induced acute pneumonia. PLoS Pathog. 2, e53 (2006). CrossRefMedline
↵ K. S. Langet al., Immunoprivileged status of the liver is controlled by Toll-like receptor 3 signaling. J. Clin. Invest. 116, 2456 (2006). CrossRefMedlineWeb of Science
↵ S. L. Doyle, L. A. O’Neill, Toll-like receptors: From the discovery of NFkappaB to new insights into transcriptional regulations in innate immunity. Biochem. Pharmacol. 72, 1102 (2006). CrossRefMedlineWeb of Science
↵ L. Guilbride, P. J. Myler, K. Stuart, Distribution and sequence divergence of LRV1 viruses among different Leishmania species. Mol. Biochem. Parasitol. 54, 101 (1992). CrossRefMedlineWeb of Science
G. Salinas, M. Zamora, K. Stuart, N. Saravia, Leishmania RNA viruses in Leishmania of the Viannia subgenus. Am. J. Trop. Med. Hyg. 54, 425 (1996). Abstract/FREE Full Text
↵ M. M. Ogget al., Short report: Quantification of leishmaniavirus RNA in clinical samples and its possible role in pathogenesis. Am. J. Trop. Med. Hyg. 69, 309 (2003). Abstract/FREE Full Text
↵ T. L. Cadd, M. C. Keenan, J. L. Patterson, Detection of Leishmania RNA virus 1 proteins. J. Virol. 67, 5647 (1993). Abstract/FREE Full Text
↵ J. A. Rey, B. L. Travi, A. Z. Valencia, N. G. Saravia, Infectivity of the subspecies of the Leishmania braziliensis complex in vivo and in vitro. Am. J. Trop. Med. Hyg. 43, 623 (1990). Abstract/FREE Full Text
↵ G. Widmer, A. M. Comeau, D. B. Furlong, D. F. Wirth, J. L. Patterson, Characterization of a RNA virus from the parasite Leishmania. Proc. Natl. Acad. Sci. U.S.A. 86, 5979 (1989). Abstract/FREE Full Text
↵ L. F. Lyeet al., Retention and loss of RNA interference pathways in trypanosomatid protozoans. PLoS Pathog. 6, e1001161 (2010). CrossRefMedline
↵ Y. T. Ro, S. M. Scheffter, J. L. Patterson, Hygromycin B resistance mediates elimination of Leishmania virus from persistently infected parasites. J. Virol. 71, 8991 (1997). Abstract/FREE Full Text
↵ A. Barralet al., Lymphadenopathy as the first sign of human cutaneous infection by Leishmania braziliensis. Am. J. Trop. Med. Hyg. 53, 256 (1995). Abstract/FREE Full Text
We are grateful to N. Saravia (CIDEIM, Colombia) and Instituto Oswaldo Cruz, for L. guyanensis strains; S. Akira (Frontier Research center, Osaka University), P. Romero (LICR, Lausanne), and B. Ryffel (CNRS, Orléans) for knockout and mutant mice; M. Delorenzi (SIB, Lausanne) for bioinformatics expertise; F. Morgenthaler (Cellular Imaging Facility, Lausanne), S. Cawsey, and M.-A. Hartley for technical assistance; and J. Patterson and Y. T. Ro for the L.g.M4147 strains. This work was funded by FNRS grants 3100A0-116665/1 (N.F.) and 310030-120325 (P.L.), Foundation Pierre Mercier (S.M.), and NIH A129646 (S.M.B.). Microarray data are available within the Gene Expression Omnibus database (GSE21418) and at http://people.unil.ch/nicolasfasel/data-from-fasels-lab/.
